2299291
PHX22992910.096 kg
This item is Not Cancellable/Not Returnable.

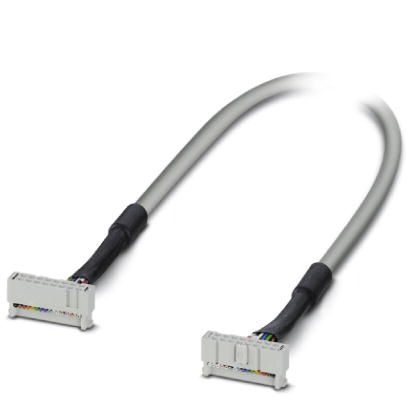

Official DistributorCable - FLK 16/EZ-DR/ 50/KONFEK
Round cable set; connection 1: IDC/FLK socket strip (1x 16-position); connection 2: IDC/FLK socket strip (1x 16-position); cable length: 0.5 m
- Unshielded
Technical Specifications
Dimensions
| Length | 0.5 m |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C (fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 70 °C (flexible installation) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of Protection | IP00 |
| Degree of Protection | ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
| Max. permissible operating voltage | 60 V DC |
| Max. current carrying capacity per path | 1 A (50 °C) |
| Max. current carrying capacity per path | 0.6 A (70°C) |
| Nominal operating mode | 100% operating factor |
Cable
| Type of cable | Round cable set |
| Cable cross section | 16x 0.14 mm² |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor material | Tin-plated Cu litz wires |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External Cable Diameter | 6.8 mm ±0.4 mm |
| Shielded | no |
| Halogen-free | no |
| Smallest bending radius, fixed installation | 58 mm |
| Smallest bending radius, movable installation | 108 mm |
| Bending cycles group | 5000 at a radius of ≥ 15x outside diameter |
| Insulation resistance | ≥ 20 MΩ*km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| Outer sheath, material | Semi-rigid PVC |
| External sheath, color | gray |
| Flame resistance | IEC 60332-1-2 (raw cable) |
| Flame resistance | VDE 0842, Part 332-1-2 (raw cable) |
| Flame resistance | IEC 60332-3-22 (raw cable) |
| Flame resistance | UL VW-1 |
| Flame resistance | CSA FT-1 |
| Resistance to Oil | can withstand occasional splashes (raw cable) |
| Gasoline resistance | can withstand occasional splashes (raw cable) |
Connection data
| Connection name | Field level |
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK socket strip |
| Number of Connections | 1 |
| Number of Positions | 16 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection data 2
| Connection name | Controller level |
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK socket strip |
| Number of Connections | 1 |
| Number of Positions | 16 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Supported controller
| Controller | Emerson DeltaV |
| - suitable I/O card | VE4001S2T2B3 |
| - suitable I/O card | VE4001S2T2B3 Series 2 |
| - suitable I/O card | VE4001S2T1B3 |
| - suitable I/O card | VE4002S1T1B3 |
| - suitable I/O card | VE4002S1T2B3 |
| - suitable I/O card | VE4002S1T2B3 Series 2 |
| - suitable I/O card | VE4003S2B4 |
| - suitable I/O card | VE4005S2B3 |
Color code
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (1) = IDC/FLK16 (1) = black |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (2) = IDC/FLK16 (2) = brown |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (3) = IDC/FLK16 (3) = red |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (4) = IDC/FLK16 (4) = orange |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (5) = IDC/FLK16 (5) = yellow |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (6) = IDC/FLK16 (6) = green |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (7) = IDC/FLK16 (7) = blue |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (8) = IDC/FLK16 (8) = violet |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (9) = IDC/FLK16 (9) = gray |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (10) = IDC/FLK16 (10) = white |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (11) = IDC/FLK16 (11) = white-black |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (12) = IDC/FLK16 (12) = white-brown |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (13) = IDC/FLK16 (13) = white-red |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (14) = IDC/FLK16 (14) = white-orange |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (15) = IDC/FLK16 (15) = white-yellow |
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK16 (16) = IDC/FLK16 (16) = white-green |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
