1007600
By Rittal
RIT100760032.78 kg

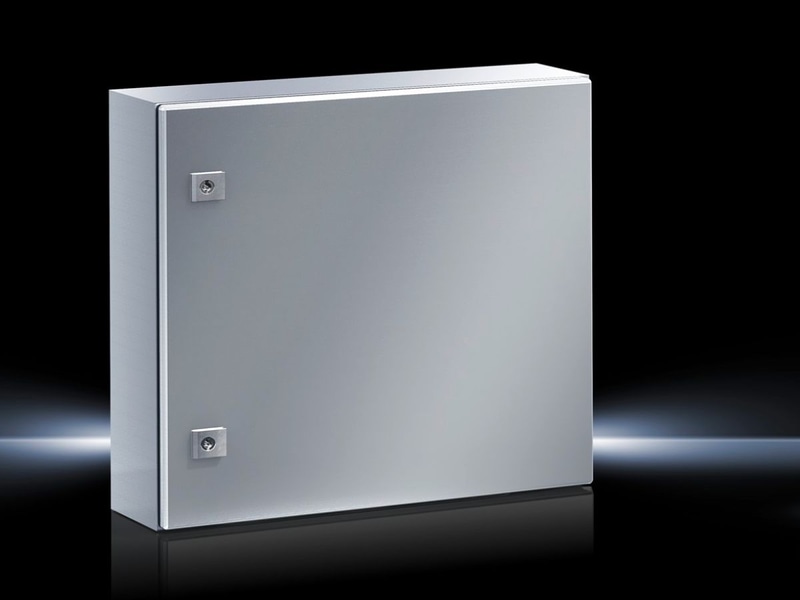

Official DistributorAE Compact enclosure, WHD: 500x500x210 mm, Stainless steel 1.4301, with mounting plate, single-door, with two cam locks
Supply includes
Housing with door(s)
Mounting plate
Lock: 3 mm double-bit
Compact enclosures AE Stainless steel
Compact enclosure AE in stainless steel including mounting plate.
Technical Specifications
Dimensions
| Width | 500 mm |
| Height | 500 mm |
| Depth | 210 mm |
Lock
| Lock version | Cam |
| Number locks | 2 |
| Lock Insert | 3 mm double-bit |
| Material lock | Die-cast zinc, nickel-plated |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 449 mm |
| Height | 470 mm |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting plate | Zinc-plated |
| Product modification | Starting in August 2016, the surface grinding is changing from 240 grain to 400 grain. The visually finer grinding pattern will enhance the cleaning properties of the housing. |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Number of doors | 1 |
| No. of locks | 2 |
| Base material | Stainless steel |
| Weight/packaging unit | 15.7 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177000254 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
