1045500
By Rittal
RIT104550027.17 kg

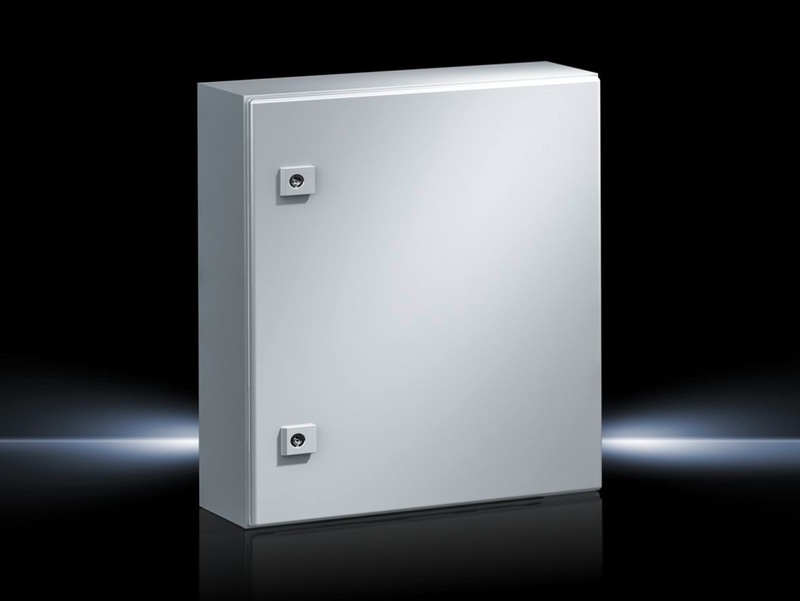

Official DistributorAE Compact enclosure, WHD: 400x500x210 mm, Sheet steel, with mounting plate, single-door, with two cam locks
Supply includes
Housing with hinged door(s), of all-round solid construction
Flange (gland) plate(s) in enclosure base
Mounting plate
Lock: 3 mm double-bit
Technical Specifications
Dimensions
| Width | 400 mm |
| Height | 500 mm |
| Depth | 210 mm |
Gland plate
| Size | 4 |
| Qty. | 1 |
Lock
| Lock version | Cam |
| Number locks | 2 |
| Lock Insert | 3 mm double-bit |
Material
| Housing | Carbon steel |
| Door | Carbon steel, all-round foamed-in PU seal |
Mounting plate
| Width | 354 mm |
| Height | 475 mm |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Color | RAL 7035 |
| Protection category NEMA | NEMA 4 |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Material thickness - Door | 1.5 mm |
| Material thickness - enclosure | 1.38 mm |
| Material thickness – mounting plate | 2 mm |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Base material | Carbon steel |
| Weight/packaging unit | 13 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177252059 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
