1508510
By Rittal
RIT15085109.9 kg

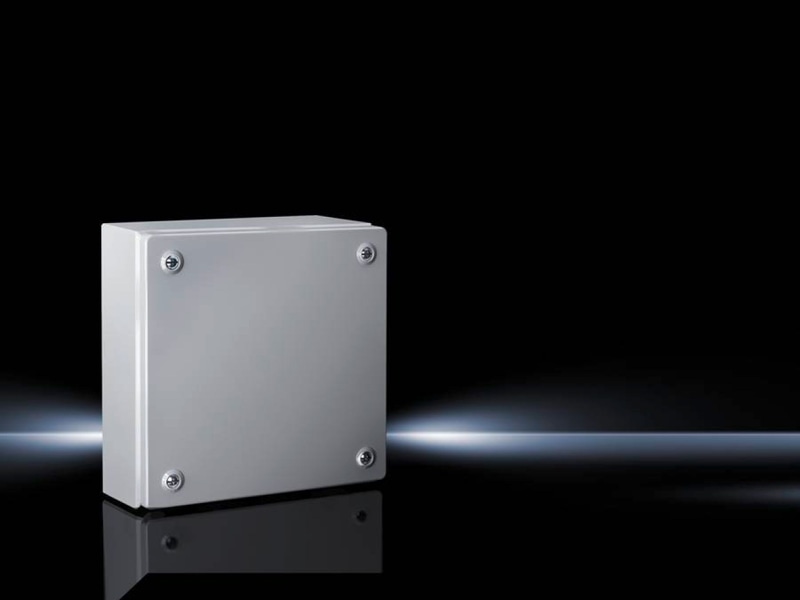

Official DistributorKL Terminal box, WHD: 400x300x120 mm, Sheet steel, without mounting plate, with cover, without gland plate
Supply includes
Housing with cover
Quick-release fasteners including plastic bushings
Technical Specifications
Dimensions
| Width | 400 mm |
| Height | 300 mm |
| Depth | 120 mm |
Material
| Housing | Carbon steel |
| Cover | Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint |
| Color | RAL 7035 |
| Protection category NEMA | NEMA 4 |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Material thickness - Cover | 1.25 mm |
| Material thickness - enclosure | 1.38 mm |
| Base material | Carbon steel |
| Weight/packaging unit | 4.8 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177251205 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
